BALL VIBRATOR MANUFACTURERS

INTRODUCTION

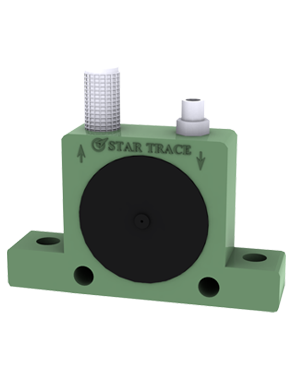

Star Trace Pvt Ltd is a reputed dealer in manufacturing and exporting of pneumatic ball vibrator in India.Star Trace pneumatic ball vibrators are manufactured with a rustproof extruded aluminium body fitted with hardened steel races on which a steel ball rotates.

Features

The control unit comprises of a constant generator, an amplifier and seven segment LED display. An invariable current is made to pass through the Hall probe that when place in a magnetic field produces a voltage proportional to the magnetic filed. This voltage is amplifier circuit and output is read on a digital panel meter calibrated in kilo gauss.

Specifications
  • Nylon end plates are located on either side to contain the ball and prevent the ingress of dust an dwater, thus allowing the unit to be used in dusty or wet environments.
  • Inlet and exhaust ports have standard pipe threads, allowing the exhaust air to be piped away, ensuring that n restriction is imposed o exhaust air.
  • Four mounting holes are provided, two vertically and two horizontally for handling difficult mounting positions.

APPLICATIONS OF BALL VIBREATORS

Star Trace Pneumatic Ball Vibrator, which is small in overall size, pneumatic ball vibrators frequency can be regulated by adjusting the flow of air to the vibrator making them useful for:

Star Trace Pneumatic Ball Vibrator, which is small in overall size, pneumatic ball vibrators frequency can be regulated by adjusting the flow of air to the vibrator making them useful for:

  • Assisting the flow of material from chutes and hoppers.
  • Preventing bottles and similar objects from locking together and blocking conveyor systems.
  • Compaction of material in containers or moulds.
  • Separation of various sizes of material on screens.
  • Maximum temperature 100°C -220°C.
  • Noise level range 75 to 85 dBA.

PERFORMANCE OF BALL VIBRATORS

Model Frequency Centrifugal force* Air consumption/Minute
min-1x1000
2Bar 4Bar 6Bar 2Bar 29PSI 4Bar 58PSI 6Bar 87PSI 2Bar 29PSI 4Bar 58PSI 6Bar 87PSI
29PSI 58PSI 87PSI N LBS N LBS N LBS Ltr. CF Ltr. CF Ltr. CF
STPBV-8 25.5 31.0 35.0 130 29 260 58 360 81 83 2.9 145 5.1 195 6.9
STPBV-10 22.5 28.0 34.0 250 26 470 106 710 160 92 3.2 150 5.3 200 7.1
STPBV-13 15.0 18.5 22.5 320 72 550 124 870 196 94 3.3 158 5.6 225 7.9
STPBV-16 13.0 17.0 19.5 450 101 800 180 1.100 248 122 4.3 200 7.1 280 9.9
STPBV-20 10.5 14.5 16.5 720 162 1.220 275 1.720 387 130 4.6 230 8.1 340 12.0
STPBV-25 9.2 12.2 14.0 930 209 1.570 353 2.050 461 160 5.6 290 10.2 425 15.0
STPBV-30 7.8 9.7 12.5 1.510 340 2.470 556 3.210 722 215 7.6 375 13.2 570 20.0
STPBV-36 7.3 9.0 10.0 2.060 464 3.150 709 4.050 911 260 9.2 475 16.8 675 24.0
*Data obtained with a Kistler 3axis dynamometer on a heavy laboratory test block and displayed by Kistler control monitor (COMO).Frequency and force will decrease on a less rigid mount. Specifications subject to change without notice or obligation.

Specification Of Ball Vibrator Manufacturers

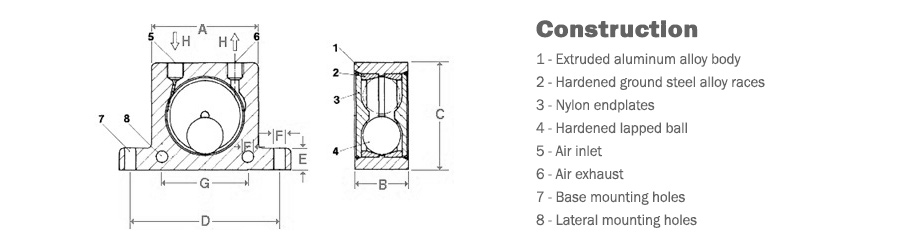

Ball Vibrator Specification
Model mm inches mm inches mm inches mm inches mm inches mm inches mm inches BSP kg Lbs
Thread
STPBV-8 50 1.97 20 0.79 86 3.38 68 2.68 12 0.47 7 0.27 40 1.57 1/4" 0.130 0.29
STPBV-10
STPBV-13 65 2.56 24 0.94 113 4.45 90 3.54 16 0.63 9 0.35 50 1.97 1/4" 0.260 0.57
STPBV-16 27 1.06 0.300 0.66
STPBV-20 80 3.15 33 1.30 128 5.04 104 4.09 16 0.63 9 0.35 60 2.36 1/4" 0.530 1.17
STPBV-25 38 1.50 0.630 1.39
STPBV-30 100 3.94 44 1.73 160 6.30 130 5.12 20 0.79 11 0.43 80 3.15 3/8" 1.130 2.49
STPBV-36 50 1.97 1.340 2.95
